Flat Mask Making Machine (One in One High Speed)

Product description

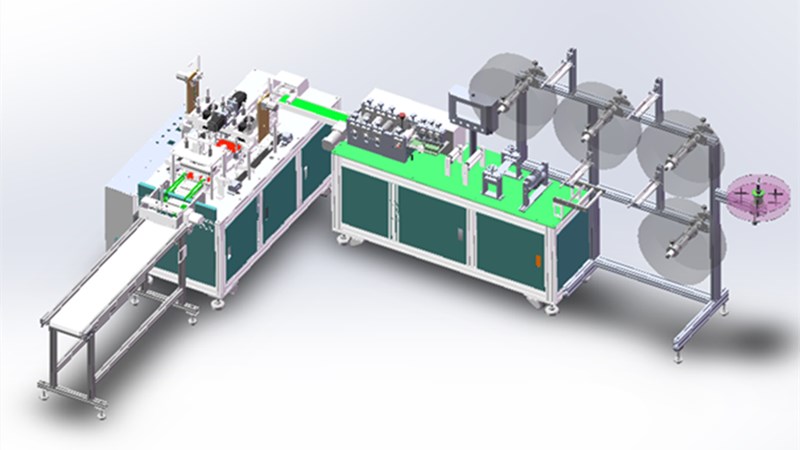

One in one High speed Flat Mask Making Machine

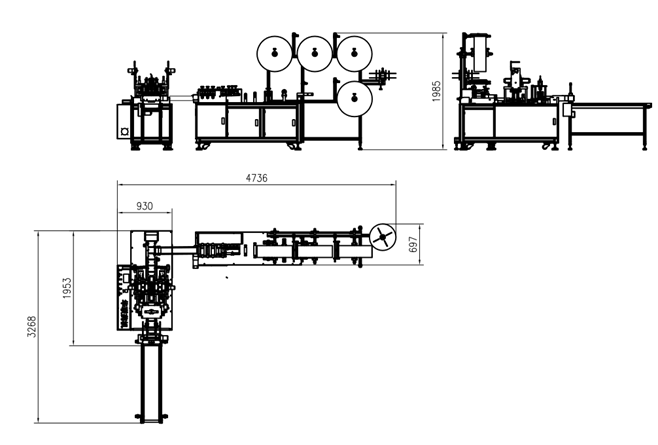

Dimension of One in One High Speed Flat Mask Making Machine

Technical Parameter

No.	Name	Details
1	Overall dimension	473632681985MM(LWH)
2	Weight	1500KG
3	Air pressure	0.5~0.7Mpa
4	Input voltage	220V/50Hz AC
5	Power	10KW
6	Humidity	20~80%RH（No condensation）
7	Temperature	5~40°C
8	Speed	80-120 pcs/minute

Main Configuration

No.	Name	Brand	Quantity
1	Touch screen	Schneider	1
2	PLC	Schneider	1
3	M241Controllers	Schneider	2
4	Servo motor	Schneider	8
5	Servo driver	Schneider	8
6	Intermediate relay	Omron	2
7	Electric eye	Omron	10
8	Breaker	Schneider	1
9	Contactor	Schneider	1
10	Switching power supply	Schneider	2
11	Switch	Schneider	2
12	Emergency stop switch	Schneider	2
13	Two-position switch	Schneider	2
14	Pneumatic Parts	SMC

Advantages of One in One High Speed Flat Mask Making Machine

1. The machine runs at high speed and has a stable performance.

2. Using ultrasonic welding technology, the finished product is beautiful,
hygienic and environmentally friendly.

3. The entire production line is automatic operation from material feeding, nose line insertion,
edge banding and cutting finished products, which is highly efficient and saves labor.

4. The frame structure is made of aluminum alloy, the key parts are made of stainless steel,
the whole line is anti-rust, durable, easy to clean, and beautiful.

5. Controlled by computer PLC programming, driven by servo, with high degree of automation.
It obtains high stability, low failure rate and low noise.

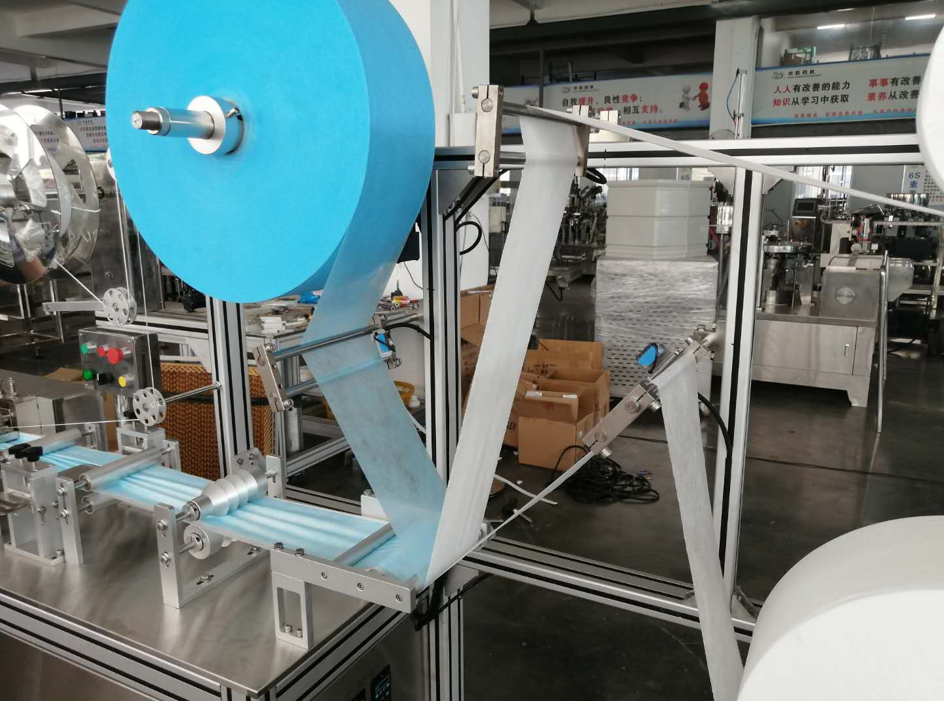

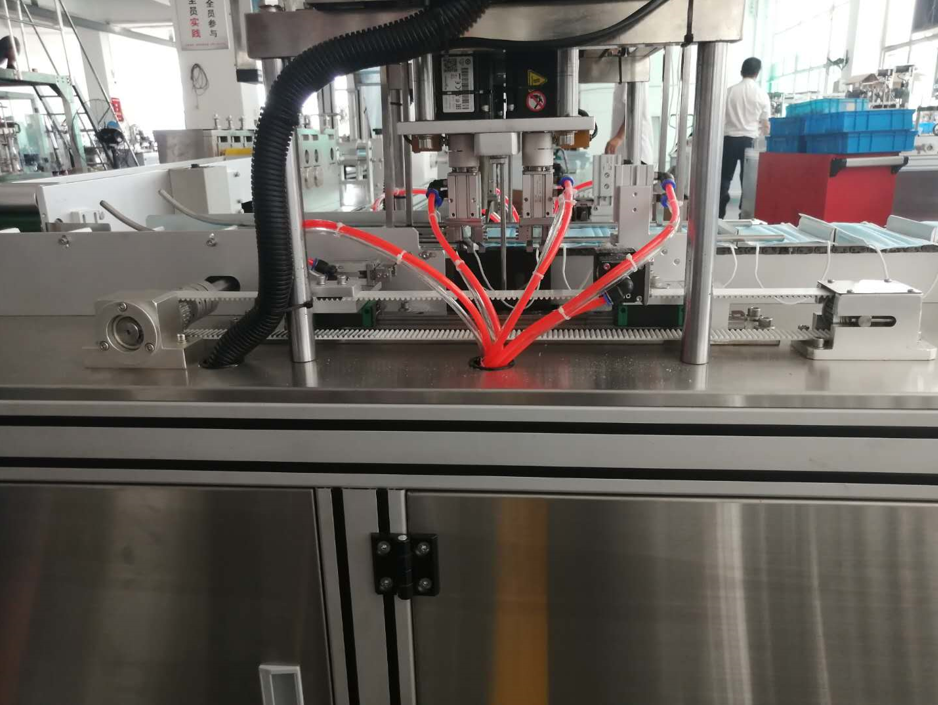

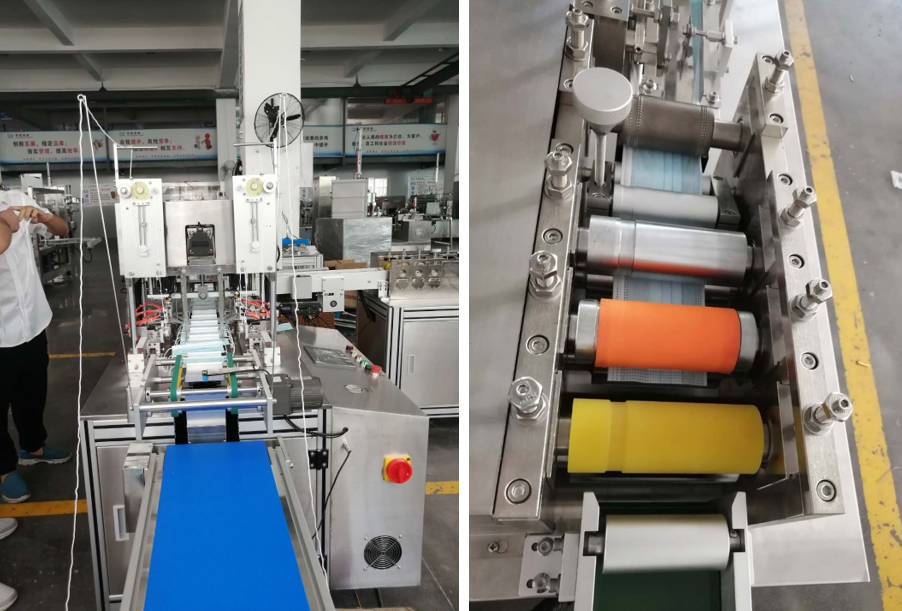

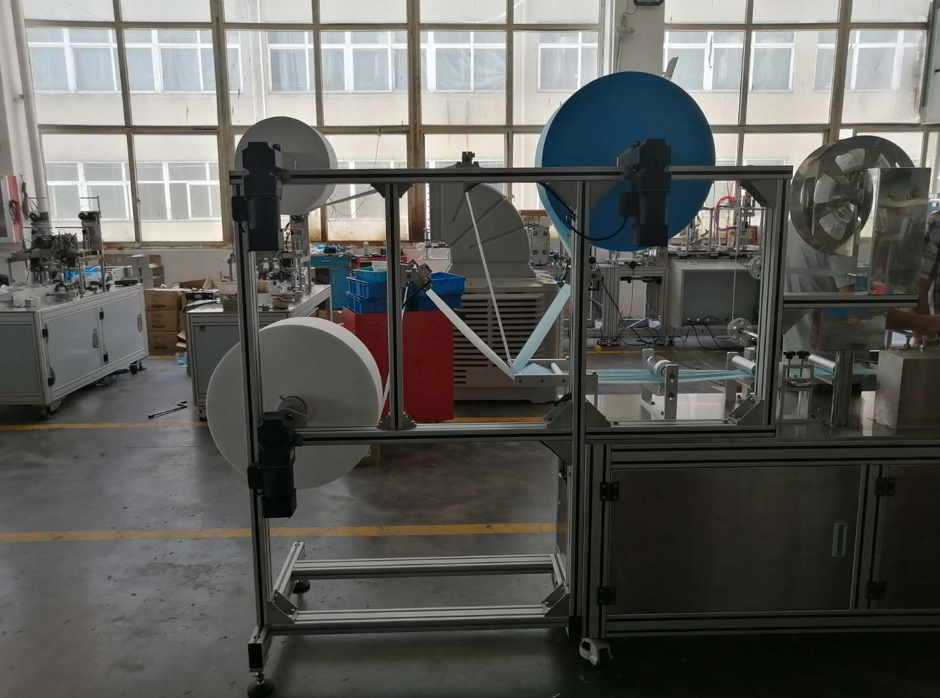

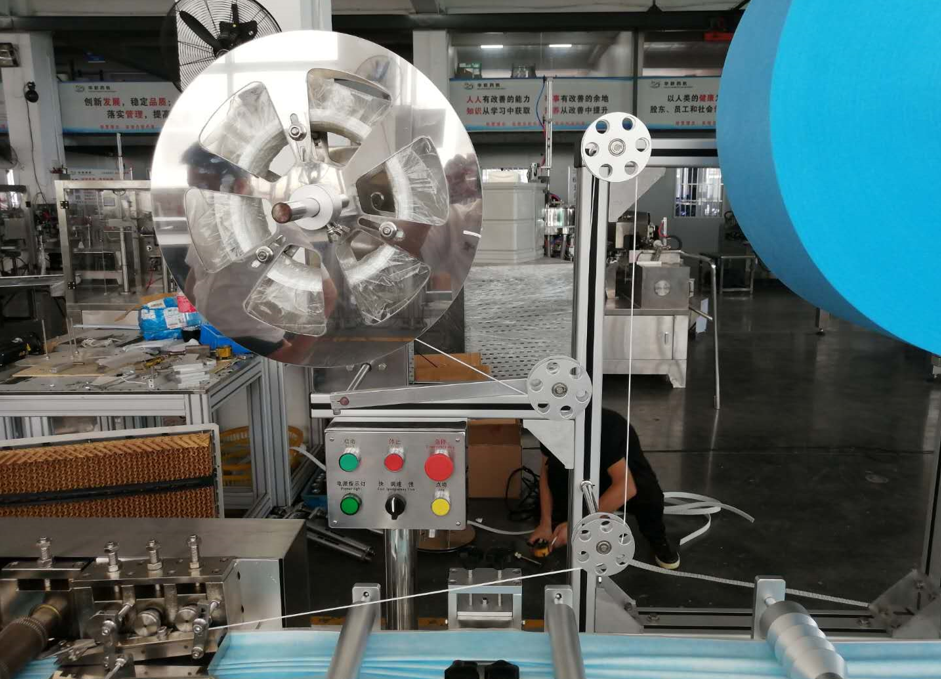

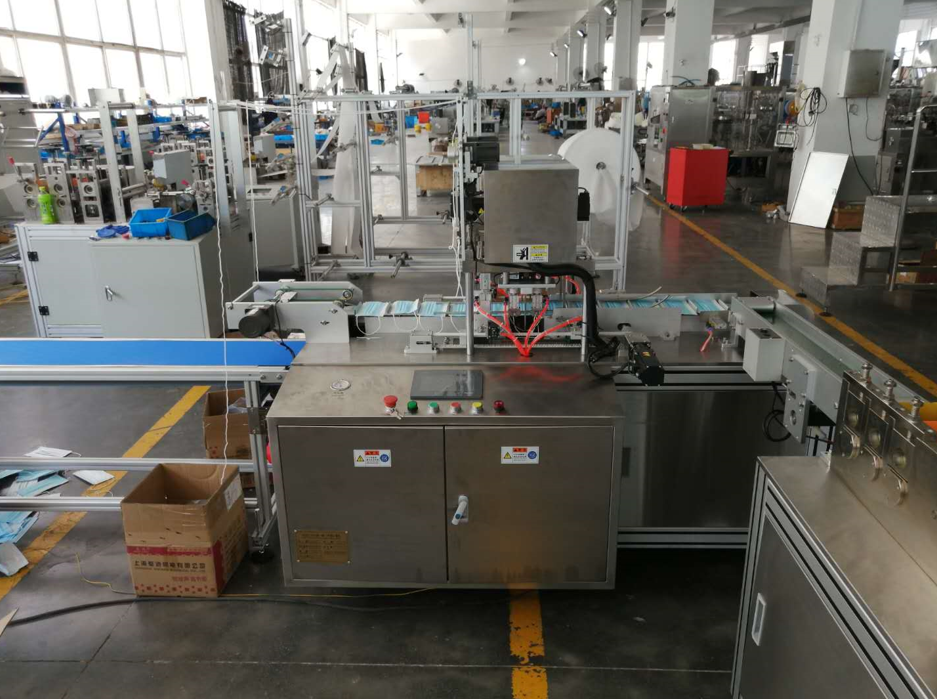

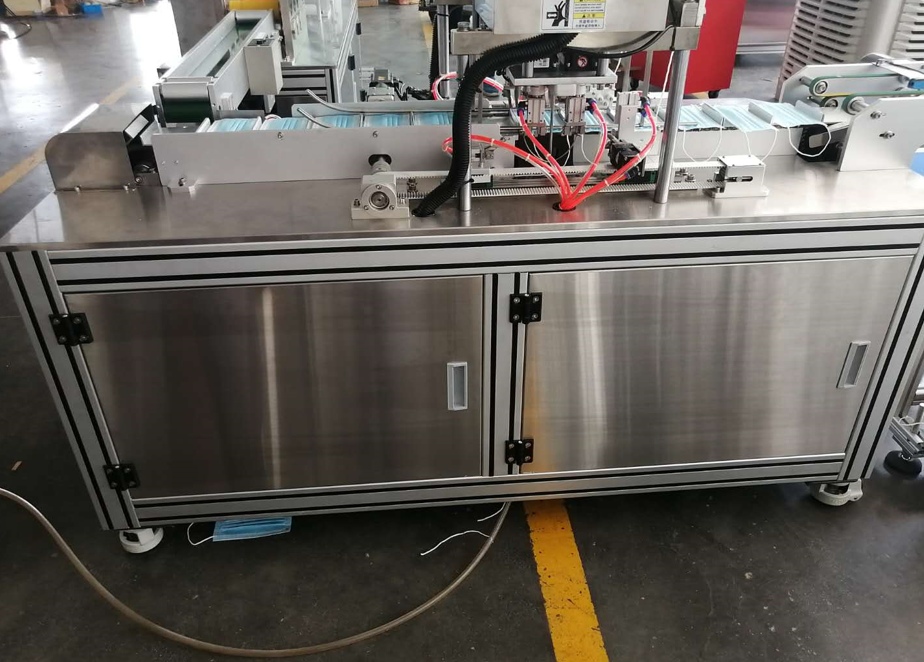

Photos of the details
